CREATE Digital Twin
Step 01
Upload Your Files – 3D Part Model/s and .csv files data.(System Classification, WBS Structure, Attributes List)
Drag-and-drop your files or add a Custom URL with public permissions.
Or, give us access to your Autodesk Tandem – Facility Management tool.
Step 02
Give a name to your Project so we can better track and name corresponding to the name given by you.
Choose from the list the best field that better describes your project type or write the type/category of your project.
Step 03
Select from the List the Platform used for Asset Management. Currently we are using only Autodesk Tandem.
Select from the list the system classification you are using or type if it is customized.

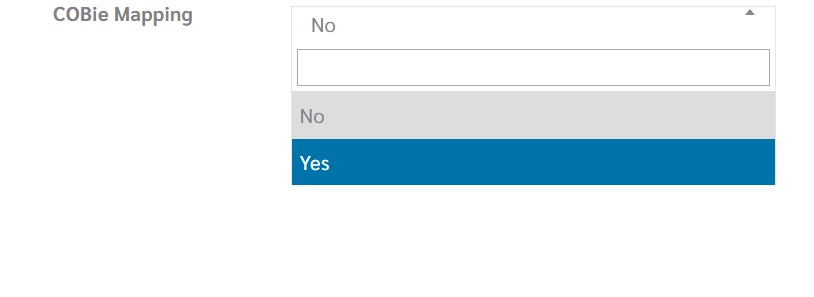

Select Yes if you want to have mapped the attributes using COBie in the 3D Model.
Step 04
Select from the list or type the number of needed Mapped Assets in the Project.

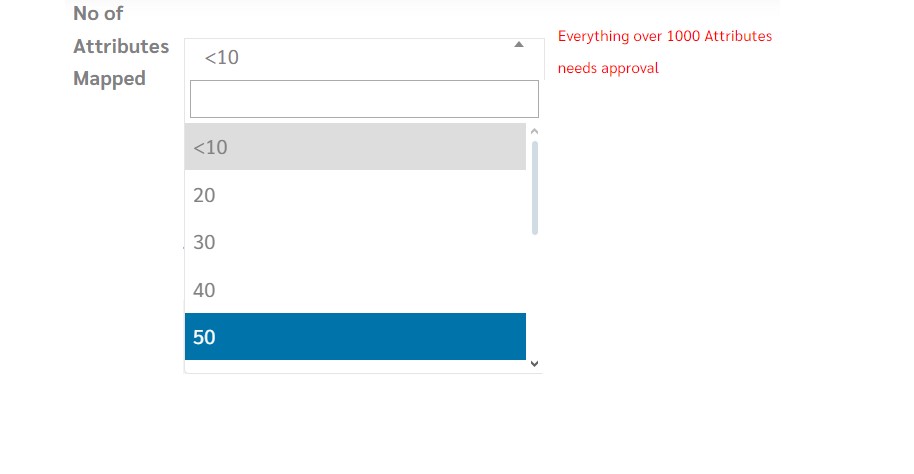

Select from the list or type the number of attributes that need to be used for an assed.
Select from the list the LOD of Asset that need to be used. Asset LOD – shows the WBS/Hierarchy of a Asset & Information

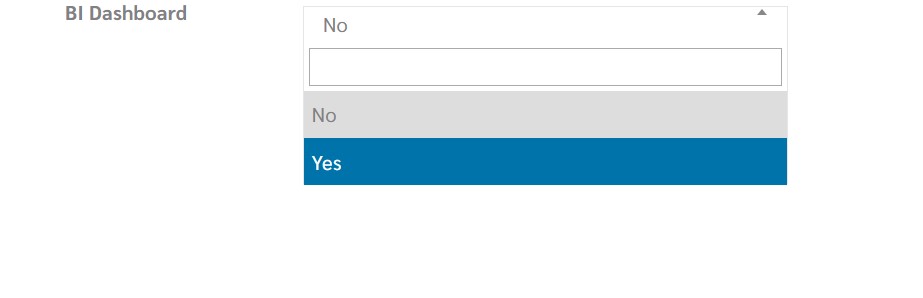

Select Yes if you want us to create also a BI Dashboard with the insight of the Federated Model when it’s delivered.
Write any other details that we should take into account.
Step 05
Write your email address so that we can contact you and send any other further details (Ex: payment details, invoice)
Step 06
PROCEED TO BIM PAYMENT
Once you filled all information ,you can proceed to the payment details. After the payment is set you will receive an order confirmation email with your order details and we will start processing your file.
You’re set, your Files are ready
Once your project is created we will send you a link to download the files.
